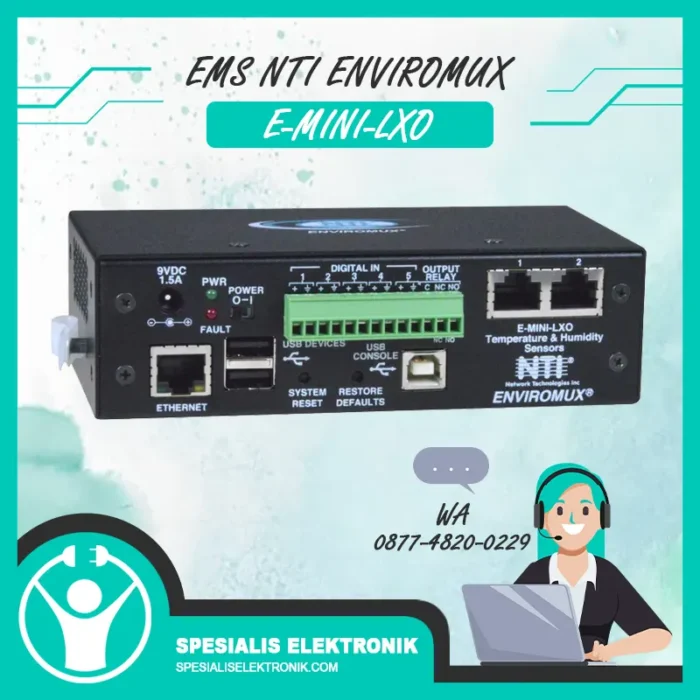

EMS NTI Enviromux E-MINI-LXO

EMS NTI Enviromux E-MINI-LXO

Mini Environment Monitoring System
SNMP and Web monitoring/management of server room environments. How to provide early warnings before critical events turn into disaster.

Also known as: Remote Server Environment Monitoring System, EMS, monitor network closet, data center thermometer, temperature humidity IP sensor reading, computer rooms temperature alert, tcp/ip temp probe.

The ENVIROMUX® Mini Environment Monitoring System (EMS) monitors critical environmental conditions (such as temperature, humidity, and water leakage) that could destroy network components in your server room. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via email-to-SMS or external USB modem).

• Monitor and manage server room environmental conditions over IP.
• Sensors supported:
  • 2 temperature/humidity sensors.
  • 5 digital inputs sensitive to contact closure.
  • Sensors are hot plugable.
• One output relay for control of external devices.
  • Relay activates upon alarm or via the user interface.
• Supports NTI’s IP network video cameras for live view of any facility.
  • One integrated view – see different Web cameras side-by-side with physical and environmental parameters.
• Monitor (ping) up to 16 IP network devices.
  • Alerts are sent if devices are not responding.
• Two USB ports for connecting USB modem or for downloading log data to USB flash drive, and one USB console port for serial terminal interface.
• Available with optional internal battery backup.
  • Alerts are sent when there is a power outage and when power returns.
• Create multiple alerts for any installed sensor.
• Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts.
  • Configure up to 50 events.
  • Up to 20 Smart Alerts can be configured to use different event combinations to send alert messages.
• Alerts are posted in message log, which is accessible through Web user interface.
• Automatically configures network settings received from a connected DHCP server.
  • If a DHCP server is not found, the default static IP address will be used.
• Integrates with various Open Source monitoring packages – Nagios, MRTG and others.
  • The unit can be polled via SNMP.
• Linux inside.
• Supports network security scanners.
• Backup and restore system configurations.
• Flexible Zero-RU mounting.
  • Mounting tabs included.
  • Optional 1RU rackmount kit available; the ENVIROMUX unit can be mounted with the front or rear facing out.
  • Optional DIN mounting available.
• Security: HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
• Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
• Optional industrial mini environment monitoring system for high temperature environments. This industrial system has the ability to operate and monitor in harsh environments at high temperatures up to 167°F (75°C).
• Use the E-MINI-LXO with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
  • Configure, monitor, and receive alerts without the use of a wired network connection.

Keunggulan Produk

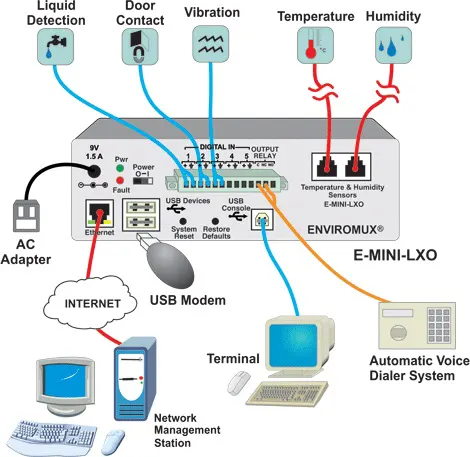

Fitur Fitur EMS NTI Enviromux E-MINI-LXO
