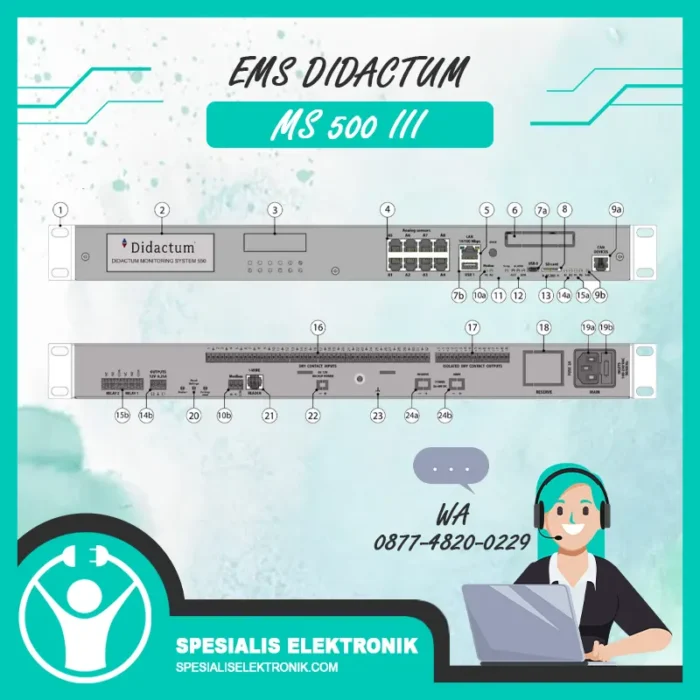

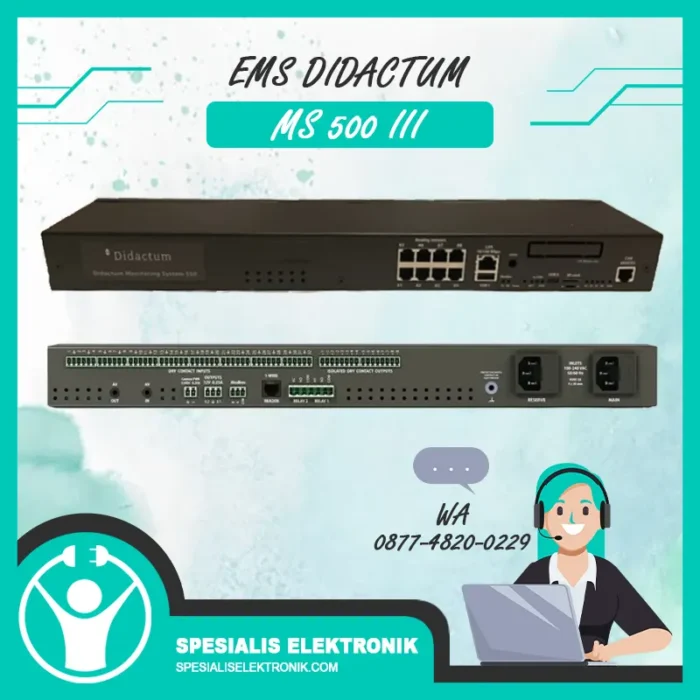

EMS Didactum Monitoring System 500 III

EMS Didactum Monitoring System 500 III

It is capable of monitoring various environmental factors such as temperature, humidity, voltage, leakage, smoke, and airflow, while also serving as an I/O controller for functions like door control, fans, generators, control panels, and alarms.

With the ability to accommodate up to 1000 different elements including notifications, triggers, timers, logic schemes, sensors, and dry contacts, this system provides a comprehensive monitoring solution. Its built-in web interface features virtual sensors, logic schemes, various types of notifications, and control panels. Additionally, it includes a slot for a Didactum LTE Slot modem to reserve an Ethernet connection.

IP-based monitoring system for monitoring multiple server rooms, storage rooms and racks. Available in the variants:

• 230V-AC
• 230V-AC A+B
• 48V-DC
• 48V-DC A+B
• 230V-AC + 48VDC
• with or without LTE modem

Monitoring system with redundant power supply

The unit is used for environmental monitoring and takes over tasks of an I/O controller. The Didactum 500 III can manage up to 1000 different elements – notifications, triggers, timers, logic schemes, sensors, switching contacts. It has an integrated web interface with virtual sensors, logic schemes, different notification types and control panels. The unit holds a slot for an LTE modem to reserve an Ethernet connection.

Environmental monitoring with the Didactum 500 III for:

• Temperature
• Humidity
• Voltage
• Leakage
• Smoke
• Air flow

Didactum 500 III as I/O controller for:

• Door control
• Fans
• Generators
• Switchboards
• Circuit breakers
• Alarms
• UPS

Application examples

EMS Didactum Dashboard

• Monitoring of larger areas in the data centre
• Monitoring of several rooms and assets
• Central control of several Didactum monitoring systems

Monitored environmental parameters

A large number of standard sensors are available for the Didactum Monitoring System 600, e.g. for monitoring temperature, humidity, airflow, doors and windows or water intrusion. In addition, the monitoring system is equipped with a Modbus RTU interface that records sensor values from up to 50 sensors via the fieldbus. Via the connectors for current and voltage, you can evaluate sensors that are equipped with a 0-10V or 4-20mA interface.

Digital I/O

The monitoring system 600 is equipped with 32 potential-free switching inputs to which you can connect detectors, e.g. for door contacts, smoke detectors and fault alarm contacts of air-conditioning systems. With the additionally available CAN extension unit, you can expand the system by another 64 inputs. For the control of actuators, 8 potential-free switching outputs are available. Furthermore, two relays are built in, via which you can switch load currents of 240VAC/10A. Alarm transmitters are supplied via two voltage outputs with 12 VDC/0.25A.

Alarm notifications

The Didactum monitoring system reports critical environmental conditions via e-mail, SNMP trap and, when using a 5G LTE modem, also via SMS. You can also use the modem as an SMS gateway to enable other Didactum monitoring systems in the environment to send SMS. Alarms are still provided via Syslog. In addition, we offer various actuators that issue alarms visually and acoustically.

Access control

The monitoring system has a port for RFID card readers to which you can connect up to two readers and assign access authorisations for them. Please note that the authorisations are not configured per reader at system level.

Video surveillance

The Monitoring System 600 II supports the connection of one AV camera, two USB cameras and two integrations of up to four IP cameras. You can record the images, but note that due to the event model, the video recording does not trigger directly, but the recording starts delayed by a few seconds. EMS Didactum Monitoring System 500 III

Data access

Measured values can be read out via SNMP and the REST api. Furthermore, data access is possible via the REST API. This also allows write access to the monitoring system. For example, you can send script-controlled SMS, switch outputs and even adjust the configuration.

Setup

The system can be set up conveniently via the web interface. Furthermore, you can manage the monitoring system script-controlled via the REST API. The Monitoring System 600 II also supports the administration of further monitoring systems via the software extension “Didactum Manager”. Various licences are available for this.

Memory extension

For recording log files and video data, you can expand the system with various permanent memories. We recommend that you install an SSD. However, you can also use slots for SD cards (SDXC up to

128GB, SDHC up to 32GB) or USB memory. Please note that these ports may be needed for other tasks.

Central management system for Didactum monitoring systems

The software extension “Didactum Manager” allows you to manage several Didactum monitoring systems. This includes configuration management as well as firmware version management.

Spesifikasi EMS Didactum Monitoring System 500 III
