EMS NTI Enviromux E-2D

EMS NTI Enviromux E-2D

Small Enterprise Environment Monitoring System
SNMP and Web monitoring/management of server room environments. Provides early warnings before critical events turn into disaster.

Also known as: Remote Server Environment Monitoring System, EMS, monitor network closet, data center thermometer, web alert thermometers temperature humidity IP sensor reading, computer rooms temperature alert, tcp/ip temp probe.

The ENVIROMUX® Small Enterprise Environment Monitoring System (EMS) monitors critical environmental conditions (such as temperature, humidity, and water leakage) that could destroy network components in your server room. When a sensor goes out of range of a configurable threshold, the system will notify you via email, SNMP traps, web-page alerts, a visual indicator (red LED), voice phone calls (via Automatic Voice Dialer System), and SMS messages (via email-to-SMS or external USB modem).

The system supports two external configurable sensors, five digital input sensors, and one output relay for control of external devices.

• Monitor and manage server room environmental conditions over IP.
• Sensors supported by a single E-2D:
  • 2 external configurable sensors
  • 5 digital inputs sensitive to contact closure
  • 8 Remote Temperature/Humidity Sensors over IP
    • E-MICRO-TRH(P): 1 integrated temperature/humidity combination sensor, 2 RJ45 ports for external temperature/humidity sensors, 2 digital inputs sensitive to contact closure, optional built-in Power over Ethernet (POE), dual DC power.
  • 4 Remote 1-Wire Sensors over IP
    • E-1W(P): two RJ11 connectors for daisy chaining many 1-wire temperature/humidity/dew point, thermocouple, or digital input expanders in any combination (up to 24 single-reading 1-wire sensors); two digital inputs sensitive to contact closure; dual DC power; optional Power over Ethernet (POE).
  • Use an RJ45 RS485 Sensor Expander to add 8 RJ45 RS485 sensors.
  • Use a Digital Input/Output Expander to add 16 digital inputs and 16 digital outputs.
• One output relay for control of external devices.
  • Relay activates upon alarm or via the user interface.
  • Control output relays via SNMP SET commands to power on/off external devices.
• Supports NTI’s IP network video cameras for live view of any facility.
  • One integrated view – see different Web cameras side-by-side with physical and environmental parameters.
  • Any programmed event can trigger a snapshot from an IP camera.
• Monitor (ping) up to 64 IP network devices.
  • Alerts are sent if devices are not responding.
• Linux inside.

• Create multiple alerts for any installed sensor.
• Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts.
  • Configure up to 50 events.
    • Setup SSH commands to be sent when events are triggered to soft shutdown or reboot machines.
  • Up to 20 Smart Alerts can be configured to use different event combinations to send alert messages.
• Alerts are posted in message log, which is accessible through Web user interface.
• Automatically configures network settings received from a connected DHCP server.
  • If a DHCP server is not found, the default static IP address will be used.
• Integrates with various Open Source monitoring packages – Nagios and MRTG.
  • The unit can be polled via SNMP.
• Two USB ports for connecting USB modem or for downloading log data to USB flash drive, and one USB console port for serial terminal interface.
• Available with optional internal battery backup.
  • Alerts are sent when there is a power outage and when power returns.
• Available with optional 24VDC or 48VDC power, or optional built-in Power over Ethernet (PoE).
• Up to five units can be used together to increase the number of sensors connected.
  • Cascade up to four E-2D/5D/16D units as slaves to one E-2D/5D/16D master unit via Ethernet connection.
    • Each master and slave unit needs its own unique IP address.
  • Uses a single Web interface for all systems/sensors connected.
• Dual redundant power supplies for connection to two separate power sources.
  • The second power supply is sold separately.
• Optional industrial small environment monitoring system for high temperature environments. This industrial system has the ability to operate and monitor in harsh environments at high temperatures up to 167°F (75°C).
• Optional Self-Hosted Enterprise Environment Monitoring System Management Software for monitoring and configuring up to 3,000 E-2D/5D/16D/MICRO/1W devices and all connected sensors. Access from anywhere using a web browser on a computer, smartphone, and/or tablet. No clients or special apps to install.
• Flexible Zero-RU mounting.
  • Mounting tabs included.
  • Optional 1RU rackmount kit available; the ENVIROMUX unit can be mounted with the front or rear facing out.
  • Optional DIN mounting available.
• Security: HTTPS, SSHv2, SSLv3, IP Filtering, LDAPv3, AES 256-bit encryption, 16-character username/password authentication, user account restricted access rights.
• Multi-language support – English, German, Chinese, and Japanese.
• Use in data centers, co-lo sites, web hosting facilities, telecom switching sites, POP sites, server closets, or any unmanned area that needs to be monitored.
• Use the E-2D with a wireless router and Wi-Fi Range Extender to create a Wireless Environment Monitoring System.
  • Configure, monitor, and receive alerts without the use of a wired network connection.

Keunggulan Produk

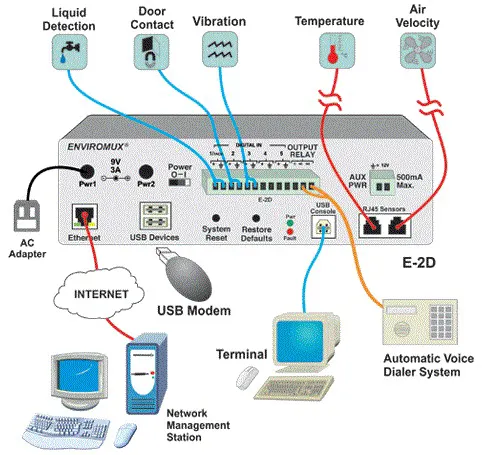

Fitur Fitur EMS NTI Enviromux E-2D

• Configure Smart Alerts for different event combinations
• 2 external configurable sensors, 5 digital inputs, 1 output relay
• User-programmable IP camera snapshots
• Optional back-up battery, Power over Ethernet (POE), or 24VDC/48VDC power
• Linux inside
• Cascade up to 5 units via Ethernet connection (1 master, 4 slaves)

Spesifikasi EMS NTI Enviromux E-2D

RJ45 Sensor Ports

• Two female RJ45 jacks for connecting NTI temperature, humidity, liquid detection, smoke detection, glass break, vibration, motion sensors, and more.
  • Two levels of user-defined alerts – non-critical and critical.
• Provides +12 VDC, 100 mA for each port.

Dry Contact Closures

• Five screw terminal pairs for connecting dry contact devices and the liquid detection sensor.
• Potential-free.
• Output voltage: +5 V DC
• Current limited to 10 mA
• Maximum resistance to close contact: 300K Ohm

Output Relay

• One screw terminal pair.
• Potential-free relay switch contacts.
• Normally open / normally closed connection points.
• Maximum switching load: 1A at 125VAC or 30VDC.

USB Ports

• Two female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive.
• One female USB Type B connector for connecting a PC for serial terminal access.

Ethernet Port

• One female RJ45 connector.
• 10/100 Base-T Ethernet interface.
  • Supports full- and half-duplex.

Power Output

• AUX Power
  • One screw terminal pair.
  • Provides +12 VDC, 500 mA.

Optional Back-Up Battery

• Rechargeable sealed lithium battery.
• Provides back-up for two hours.

Protocols

• HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, TLS v1.2, LDAPv3, XOAUTH2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0, RADIUS
  • Support for XOAUTH2 provides higher security authentication for email accounts (e.g. Gmail).
• Compatible with any SNMP management software.
  • The unit can be polled via SNMP.
• Operates and configures via HTTP/HTTPS web page, Telnet, SSH, or USB serial interface.
  • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12.
• An IP address can be assigned to the E-2D automatically by a DHCP server.
• Generates SNMP traps, email alerts, syslog messages, and SMS messages (via USB 3G modem).
  • Alerts are posted in event log, which is accessible through Web user interface.
  • Email alerts can be sent to 17 addresses. EMS NTI Enviromux E-2D
• Supports HTTP REST API to poll sensor data with response in JSON format.
