- Mount to the outside of a thin walled steel, copper, or aluminum pipe (up to 1/4″ wall).
- Copper contact transmits surface temperature to thermal sensor.
- Weatherproof enclosure designed to IP65 specifications.
- Applications from -40 to 185°F (-40 to 85°C).
- Accurate to within ±1.0°F (±0.5°C).
- MTBF: 3,540,911 hours.
- Response time: <1 minute for temperature changes of ±2°F.
- High resistance to external influences on the cable due to digital output signal.
- Re-calibration is not necessary after initial set-up.
- Self centering mounting bracket available for 1-3″ (25 mm) diameter pipe, and 3-6.5″ (76 mm) diameter pipe (included).
- Included adjustable cable ties secure mounting bracket to pipe.
- Length: 7 feet.
- Includes an RJ45 coupler to extend the sensor up to 1,000 feet using CATx cable (minimum 24AWG).
- Current consumption: 14mA @ 5VDC.
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- Regulatory approvals: CE, RoHS.
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Beranda / Toko / EMS / Sensor EMS / NTI E-STSP-7 Pipe Temperature Sensor
NTI E-STS Temperature Sensor
Rp 2.250.000
NTI E-STSP-SL-7 Strap-On Pipe Temperature Sensor
Rp 13.050.000
NTI E-STSP-7 Pipe Temperature Sensor
Rp 5.895.000
- Mount to the outside of a thin walled steel, copper, or aluminum pipe (up to 1/4″ wall).
- Copper contact transmits surface temperature to thermal sensor.
- Weatherproof enclosure designed to IP65 specifications.
- Applications from -40 to 185°F (-40 to 85°C).
- Accurate to within ±1.0°F (±0.5°C).
- MTBF: 3,540,911 hours.
- Response time: <1 minute for temperature changes of ±2°F.
- High resistance to external influences on the cable due to digital output signal.
- Re-calibration is not necessary after initial set-up.
- Self centering mounting bracket available for 1-3″ (25 mm) diameter pipe, and 3-6.5″ (76 mm) diameter pipe (included).
- Included adjustable cable ties secure mounting bracket to pipe.
- Length: 7 feet.
- Includes an RJ45 coupler to extend the sensor up to 1,000 feet using CATx cable (minimum 24AWG).
- Current consumption: 14mA @ 5VDC.
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- Regulatory approvals: CE, RoHS.
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
0
People watching this product now!
Deskripsi produk
Informasi Tambahan
Berat | 1 kg |
---|---|
produk |
Barang |
merek | |
kondisi |
Baru |
jenis-sensor |
Sensor Suhu |
Ulasan (0)
Dinilai 0 dari 5
0 reviews
Dinilai 5 dari 5
0
Dinilai 4 dari 5
0
Dinilai 3 dari 5
0
Dinilai 2 dari 5
0
Dinilai 1 dari 5
0
Jadilah yang pertama memberikan ulasan “NTI E-STSP-7 Pipe Temperature Sensor” Batalkan balasan
Anda harus login untuk mengirimkan ulasan.
Tentang NTI
Network Technologies Inc (NTI), founded in 1984, is a leading manufacturer of high quality IT and A/V solutions. NTI products are used worldwide by leading companies in every industry, including manufacturing, retail, government, education, healthcare, financial services, entertainment, worship, broadcast, and telecommunications.
Informasi Pengiriman
SYARAT & KETENTUAN BERBELANJA
- Biasakan Sebelum ORDER barang untuk tanya stock barang karena perputaran barang sangat cepat.
- Ongkos untuk pengiriman dan retur barang (komplain) sepenuhnya ditanggung oleh pembeli
- Barang yang sudah dibeli tidak dapat ditukar atau dikembalikan dengan alasan apapun.
- Jika tidak ada keterangan warna yang dipilih, maka barang dikirim secara acak.
- Semua barang yang dijual di toko online kami adalah 100% baru.
- Seluruh barang yang dikirim sudah dipastikan tidak ada kerusakan/cacat.
- Pengemasan barang kiriman akan dilakukan seaman mungkin.
- Jika terjadi kerusakan barang yang disebabkan oleh pihak pengiriman, adalah diluar tanggung jawab kami.
JADWAL WAKTU & INPUT NOMOR RESI PENGIRIMAN
- Waktu pengiriman : Senin - Jumat Pukul 16.00 WIB (Khusus Yes Pukul 15.00 WIB)& Sabtu Pukul 15.00 WIB.
- Pemesanan yang masuk sebelum pukul 16.00 WIB, akan dikirim pada hari yang sama.
- Pemesanan yang masuk melewati pukul 16.00 WIB, akan dikirim pada hari berikutnya.
- Nomer resi pengiriman akan input pada malam hari sekitar pukul 21.00 -24.00 WIB / pada keesokan harinya.
SKU:
E-STSP-7
Kategori: Sensor EMS
Produk Terkait
NTI E-LLDC-xx Liquid Location Detection Sensor Cable
Rp 6.165.000
Dinilai 0 dari 5
Spesialis Elektronik – NTI E-LLDC-xx Liquid Location Detection Sensor Cable
- For detecting water presence at a specific location.
- 100% waterproof electronics.
- Detects any conductive liquid.
- Minimum puddle: 0.6" (15 mm) diameter.
- Detects liquid depth >0.1" (2.5 mm).
- M12 4-pin connectors.
- Available lengths: 10/25/50/100 feet and custom lengths up to 4,000 feet.
- Contact an NTI product consultant for custom cable lengths
- Bend radius: 0.375" (9.53 mm)
- Operating temperature: 32 to 167°F (0 to 75°C).
- Regulatory approvals: CE, RoHS
- MTBF: 10,869,188 hrs
- Compatible with E-ALDS Addressable Leak Detection Sensor.
- Use self-adhesive clips (E-CLPxx-LD) to prevent sensor rope cable from shifting after installation
NTI E-RTDS-A1112 All-Purpose 100 Ohm RTD Sensor
Rp 12.150.000
Dinilai 0 dari 5
Spesialis Elektronik – NTI E-RTDS-A1112 All-Purpose 100 Ohm RTD Sensor
- Precision sensor with 316 stainless steel probe.
- Applications from -328 to 1112°F (-200 to 600°C).
- Accurate to within ±0.27°F (±0.15°C) for -148 to 842°F (-100 to 450°C).
- Probe size: 6 in (152 mm)
- Cable length: 40 in (1.02 m) 4-wire lead.
- Lead wire max temperature: 482°F (250°C)
- 100 Ohm Pt 385 curve.
- Requires the E-RTDT-140/240/1562 and E-S420MA-24V to operate with the E-2D/5D/16D.
- E-RTDT-140 supports temperatures -20 to 140°F (-28 to 60°C).
- E-RTDT-240 supports temperatures 30 to 240°F (-1 to 115°C).
- E-RTDT-1562 supports temperatures -328 to 1562°F (-200 to 855°C).
NTI E-RTDS-MP240 Mini Probe 100 Ohm RTD Sensor
Rp 2.025.000
Dinilai 0 dari 5
Spesialis Elektronik – NTI E-RTDS-MP240 Mini Probe 100 Ohm RTD Sensor
- Applications from -67 to 240°F (-55 to 115°C).
- Accurate to within ±0.27°F (±0.15°C).
- Probe size: 0.19" (4.8 mm) round x 0.50" (13 mm) long stainless steel housing.
- Cable length: 18" (457 mm) 2-wire lead.
- 100 Ohm Pt 385 curve
- Regulatory approvals: CE
- Requires the E-RTDT-140/240/1562 and E-S420MA-24V to operate with the E-2D/5D/16D.
- E-RTDT-140 supports temperatures -20 to 140°F (-28 to 60°C).
- E-RTDT-240 supports temperatures 30 to 240°F (-1 to 115°C).
- E-RTDT-1562 supports temperatures -328 to 1562°F (-200 to 855°C).
NTI E-STHS-LSH Fan-Aspirated Temperature/Humidity/Dew Point Sensor, Low Self-Heating
Rp 7.200.000
Dinilai 0 dari 5
- Fan-Aspirated Temperature/Humidity Sensor compensates for parasitic heating due to electrical power dissipation and/or exposure to solar radiation.
- Internal fan constantly draws air in over the sensor, providing highly accurate temperature readings.
- Ideal for installations where steep temperature gradients are common, and where there is little to no air flow.
- Use in freezers where there is intermittent air flow.
- Applications from -4 to 140°F (-20 to 60°C) and 0 to 90% relative humidity.
- Temperature accuracy:
- ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
- ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
- Inflation due to self-heating: <0.9°F (0.5°C) typical, 2.3°F (1.3°C) max.
- Humidity accuracy (at 77°F/25°C):
- 10 to 80% relative humidity: ±4%
- 20 to 80% relative humidity: ±3%
- 80 to 90% relative humidity: ±4%
- Supports dew point measurement.
- Aspiration rate: 1 cfm (0.2 ft/s)
- Dimensions (including mounting brackets) WxDxH (in): 2.19x2.87x1.41 (56x73x36 mm)
- Communication type: RS485
- Compatible with E-2D/5D/16D.
- Powered by E-2D/5D/16D.
- Current consumption: 17mA @ 5VDC and 25mA@12VDC
- MTBF: 423,371 hours
- Regulatory approvals: CE, RoHS
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2km) from the ENVIROMUX unit.
NTI E-STHS-PRC Low-Cost Temperature/Humidity/Dew Point Sensor
Rp 11.250.000
Dinilai 0 dari 5
- Applications from 14 to 140°F ( -10 to 60°C) and 10 to 80% relative humidity.
- Accurate to within ±0.2°F (±0.1°C) and ±1.8% relative humidity.
- Supports dew point measurement.
- High resistance to external influences on the cable due to digital output signal.
- RJ45 connector.
- Voltage Supply: 5VDC
- Current Consumption: 20mA
- Communication type: RS485
- Data rate: 96kbps
- Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- E-2D: only compatible with Rev C units (features two power inputs).
- Regulatory approvals: CE, RoHS
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
NTI E-STHSB-N4085IND-x Industrial Temperature/Humidity Sensor
Rp 5.805.000
Dinilai 0 dari 5
- Applications from -40 to 185°F (-40 to 85°C) and 0 to 100% non-condensing relative humidity.
- Accuracy:
- ±0.7°F (± 0.4°C) at 14 to 185°F (-10 to 85°C)
- ±1.6°F (± 0.9°C) at -40 to 14°F (-40 to -10°C)
- ±3% relative humidity at 0 to 80% non-condensing RH and 86°F (30°C)
- ±4.5% relative humidity at 80 to 100% non-condensing RH and 86°F (30°C)
- High resistance to external influences on the cable due to digital output signal.
- RJ45 connector.
- Voltage supply: 5VDC
- Current consumption:
- +5V Rail: 4.9V
- DC Current: 13mA
- Communication type: RS485
- Data rate: 96kbps
- Available lengths for attached CAT5e cable: 10/25/35/50/100 feet.
- Call for pricing on custom lengths up to 1,000 feet.
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- E-2D: only compatible with Rev C units (features two power inputs).
- Regulatory approvals: CE, RoHS
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
NTI E-STSM-E7 Probe-Style Temperature Sensor
Rp 2.475.000
Dinilai 0 dari 5
Spesialis Elektronik – NTI E-STSM-E7 Probe-Style Temperature Sensor
- For use with E-2D/5D/16D.
- E-2D: only compatible with Rev C units (features two power inputs).
- Not compatible with E-SEMS-16(U).
- Applications from -4 to 140°F (-20 to 60°C).
- High resistance to external influences on the cable due to digital output signal.

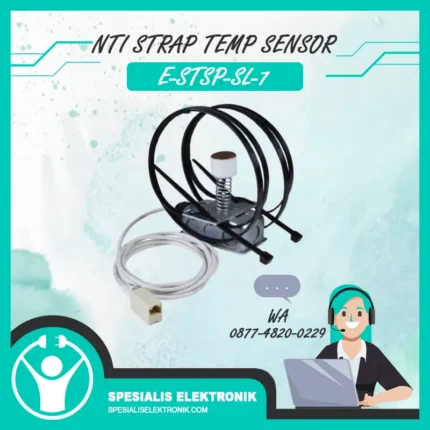

NTI E-STSP-SL-7 Strap-On Pipe Temperature Sensor
Rp 13.050.000
Dinilai 0 dari 5
- Mount to the outside of an insulated metal pipe (up to 1/4" wall).
- Cable ties secure sensor to pipe diameters from 5" up to 14".
- Mounts with insulation thicknesses from 0.5" - 2.5".
- Copper contact transmits surface temperature to thermal sensor.
- Spring-loaded contact enables minimal removal of pipe insulation.
- NEMA 1 and IP20 rated metal enclosure
- Applications from -40 to 185°F (-40 to 85°C).
- Accurate to within ±1.0°F (±0.5°C).
- Response time: <1 minute for temperature changes of ±2°F.
- High resistance to external influences on the cable due to digital output signal.
- Re-calibration is not necessary after initial set-up.
- MTBF: 3,540,911 hours.
- Length: 7 feet.
- Includes an RJ45 coupler to extend the sensor up to 1,000 feet using CATx cable (minimum 24AWG).
- Current consumption: 14mA @ 5VDC.
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- Regulatory approvals: CE, RoHS.
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
