NTI E-STSP-7 Pipe Temperature Sensor
Rp 5.895.000

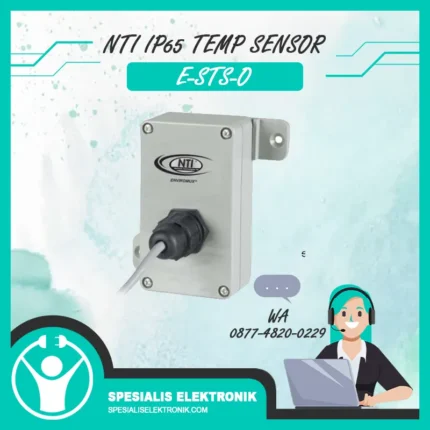

NTI E-STS-O IP65 Outdoor Temperature Sensor
Rp 3.300.000
NTI E-STSP-SL-7 Strap-On Pipe Temperature Sensor
0 Terjual
Rp 13.050.000
- Mount to the outside of an insulated metal pipe (up to 1/4″ wall).
- Cable ties secure sensor to pipe diameters from 5″ up to 14″.
- Mounts with insulation thicknesses from 0.5″ – 2.5″.
- Copper contact transmits surface temperature to thermal sensor.
- Spring-loaded contact enables minimal removal of pipe insulation.
- NEMA 1 and IP20 rated metal enclosure
- Applications from -40 to 185°F (-40 to 85°C).
- Accurate to within ±1.0°F (±0.5°C).
- Response time: <1 minute for temperature changes of ±2°F.
- High resistance to external influences on the cable due to digital output signal.
- Re-calibration is not necessary after initial set-up.
- MTBF: 3,540,911 hours.
- Length: 7 feet.
- Includes an RJ45 coupler to extend the sensor up to 1,000 feet using CATx cable (minimum 24AWG).
- Current consumption: 14mA @ 5VDC.
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- Regulatory approvals: CE, RoHS.
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
0
People watching this product now!
Deskripsi produk
Spesialis Elektronik – NTI E-STSP-SL-7 Strap-On Pipe Temperature Sensor
- Mount to the outside of an insulated metal pipe (up to 1/4″ wall).
- Cable ties secure sensor to pipe diameters from 5″ up to 14″.
- Mounts with insulation thicknesses from 0.5″ – 2.5″.
- Copper contact transmits surface temperature to thermal sensor.
- Spring-loaded contact enables minimal removal of pipe insulation.
- NEMA 1 and IP20 rated metal enclosure
- Applications from -40 to 185°F (-40 to 85°C).
- Accurate to within ±1.0°F (±0.5°C).
- Response time: <1 minute for temperature changes of ±2°F.
- High resistance to external influences on the cable due to digital output signal.
- Re-calibration is not necessary after initial set-up.
- MTBF: 3,540,911 hours.
- Length: 7 feet.
- Includes an RJ45 coupler to extend the sensor up to 1,000 feet using CATx cable (minimum 24AWG).
- Current consumption: 14mA @ 5VDC.
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- Regulatory approvals: CE, RoHS.
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Informasi Tambahan
| Berat | 1 kg |
|---|---|
| produk |
Barang |
| merek | |
| kondisi |
Baru |
| jenis-sensor |
Sensor Suhu |
Ulasan (0)
Anda harus login untuk mengirimkan ulasan.
Tentang NTI
Network Technologies Inc (NTI), founded in 1984, is a leading manufacturer of high quality IT and A/V solutions. NTI products are used worldwide by leading companies in every industry, including manufacturing, retail, government, education, healthcare, financial services, entertainment, worship, broadcast, and telecommunications.
