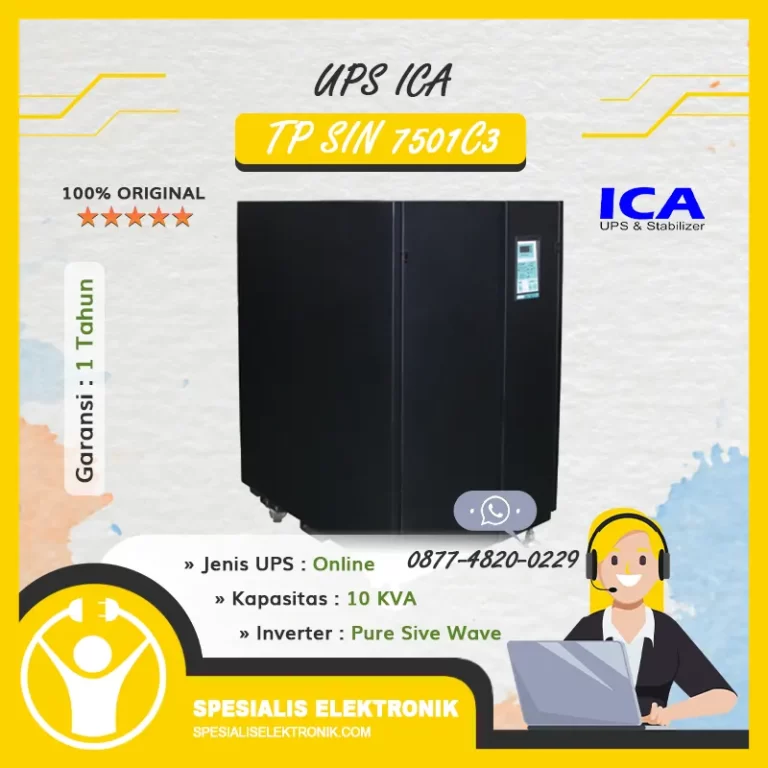

Spesialis Elektronik – UPS ICA TP SIN 7501C3 10000VA
Inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
Technical Specifications UPS ICA TP SIN 7501C3 10000VA
| Model | : | UPS SIN7501C3 |
| Capacity | : | 10000 VA / 6500 W |
| AC Input Voltage | : | Three Phase, 4 Wire 380V |
| AC Input Frequency | : | 50 ± 5% Hz |
| AC Input Protection | : | No Fuse Breaker |
| DC Input Voltage | : | 192 V |
| DC Input Internal Battery | : | 16 x 12 V, 17 Ah |
| DC Input Protection | : | No Fuse Breaker |
| Charger Topology | : | SWITCHING REGULATION |
| Charger Floating Voltage | : | 216 V |
| Inverter Output Waveform | : | SINUSOIDA |
| Inverter Output Distorsion | : | < 3 % THD |
| Inverter Output Topology | : | PULSE WIDTH MODULATION (PWM) |
| Inverter Output Voltage | : | 220 ± 2% V |
| Inverter Output Frequency | : | 50 ± 1 % Hz |
| Inverter Output Efficiency | : | ± 85 % |
| Transfer Time When AC Input Loss | : | 0 ms |
| Static Transfer Switch | : | 2 ms From Inverter To By-Pass, 0 ms Back To Inverter |
| Back Up Time | : | 10 min |
| Buzzer UPS in Bypass Condition | : | Intermittent Sound With 30 Second Interval |
| Buzzer AC Input Abnormal | : | Intermittent Sound With 4 Second Interval |
| Buzzer Battery Low | : | Intermittent Sound With 1 Second Interval |
| Operation Temperature | : | 0 – 40°C |
| Dimension(DxWxH) | : | 765x 595 x 1120 mm |
| Weight Netto | : | 320 Kg |
| Weight Gross | : | 352 Kg |
