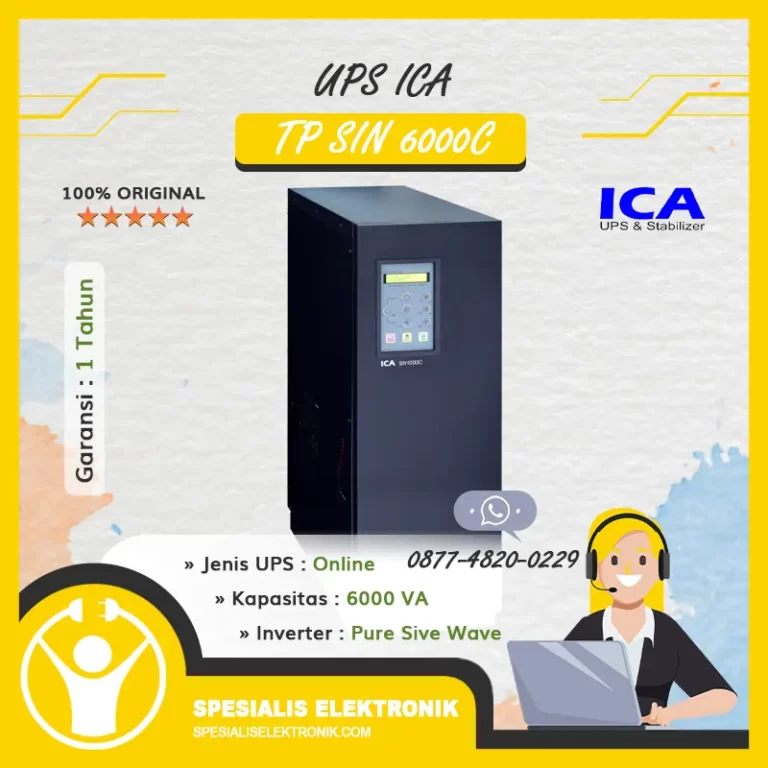

Spesialis Elektronik – UPS ICA TP SIN 6000C 6000VA
Inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
Technical Specifications UPS ICA TP SIN 6000C 6000VA
| Model | : | UPS SIN6000C |
| Capacity | : | 6000 VA / 4800 W |
| AC Input Voltage | : | 160 – 290 V |
| AC Input Frequency | : | 50 ± 5% Hz |
| AC Input Protection | : | MCB |
| DC Input Voltage | : | 192 V |
| DC Input Internal Battery | : | 16 x 12 V, 7 Ah |
| DC Input Protection | : | MCB |
| Charger Topology | : | SWITCHING REGULATION |
| Charger Floating Voltage | : | 217.6 V |
| Inverter Output Waveform | : | PURE SINEWAVE |
| Inverter Output Distortion | : | ≤2% THD |
| Inverter Output Topology | : | PULSE WIDTH MODULATION (PWM) |
| Inverter Output Voltage | : | 220 ± 2% V |
| Inverter Output Frequency | : | 50 ± 1 % Hz |
| Inverter Output Efficiency | : | ± 84 % |
| Transfer Time When AC Input Loss | : | 0 ms |
| Static Transfer Switch | : | 2 ms FROM INVERTER TO BYPASS; 0 ms BACK TO INVERTER |
| Back Up Time | : | 10 min |
| Buzzer AC Input Abnormal | : | INTERMITTENT SOUND WITH 2 SECONDS INTERVAL |
| Buzzer Battery Low | : | INTERMITTENT SOUND WITH 0.5 SECOND INTERVAL |
| Operation Temperature | : | 0 – 40°C |
| Dimension (DxWxH) | : | 595 x 235 x 705 mm |
| Weight Netto | : | 93 Kg |
| Weight Gross | : | 101 Kg |
