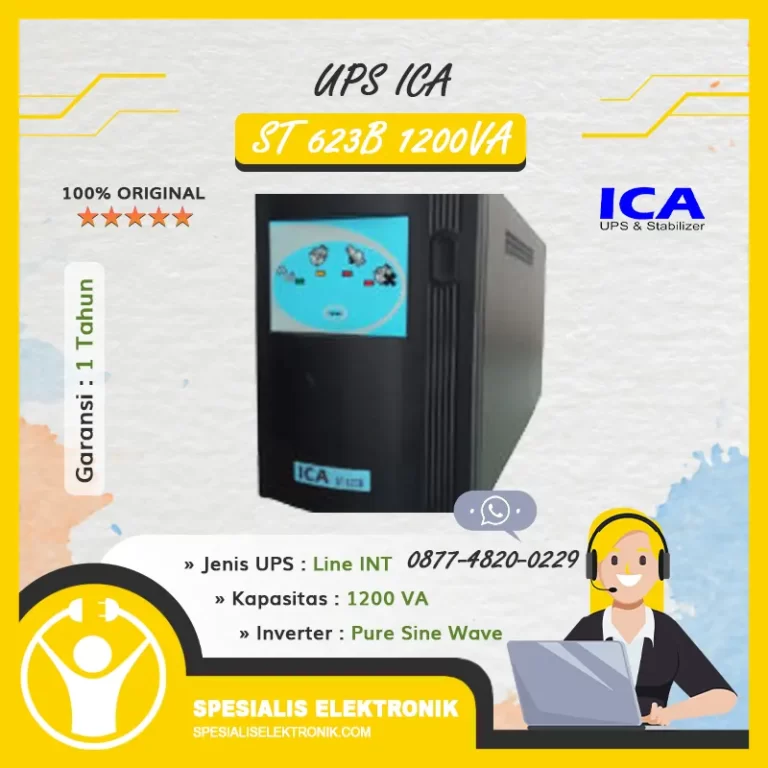

Spesialis Elektronik – UPS ICA ST 623B 1200VA
Inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
Technical Specifications UPS ICA ST 623B 1200VA
| Model | : | UPS ST623B |
| Capacity | : | 1200 VA / 600 W |
| AC Input Voltage | : | 160 – 250 V |
| AC Input Frequency | : | 50 ± 3% Hz |
| AC Input Protection | : | Fuse 6.3 A |
| DC Input Voltage | : | 24 V |
| DC Input Internal Battery | : | 2 x 12 V, 7 Ah |
| DC Input Protection | : | Fuse |
| Charger Topology | : | CONSTANT VOLTAGE |
| Charger Floating Voltage | : | 27 V |
| Inverter Output Waveform | : | SINEWAVE |
| Inverter Output Distorsion | : | <3% THD |
| Inverter Output Topology | : | PULSE WIDTH MODULATION (PWM) |
| Inverter Output Voltage | : | 220 ± 5% V |
| Inverter Output Frequency | : | 50 ± 1% Hz |
| Inverter Output Efficiency | : | ± 80 % |
| Transfer Time | : | ≤4 ms |
| Back Up Time | : | 10 min |
| Buzzer AC Input Low/Fail | : | INTERMITTENT SOUND WITH 4 SECONDS INTERVAL |
| Buzzer AC Input High | : | INTERMITTENT SOUND WITH 1 SECOND INTERVAL |
| Buzzer Battery Low | : | INTERMITTENT SOUND WITH 1 SECOND INTERVAL |
| Operation Temperature | : | 0 – 40 °C |
| Dimension(DxWxH) | : | 425 x 140 x 200 mm |
| Weight Gross | : | 14 Kg |
Terima kasih telah memesan UPS ICA, Kami Spesialis Elektronik sangat bersemangat untuk memproses pesananmu. Jangan lupa untuk memeriksa halaman toko kami untuk berbelanja lebih banyak lagi, ya!
