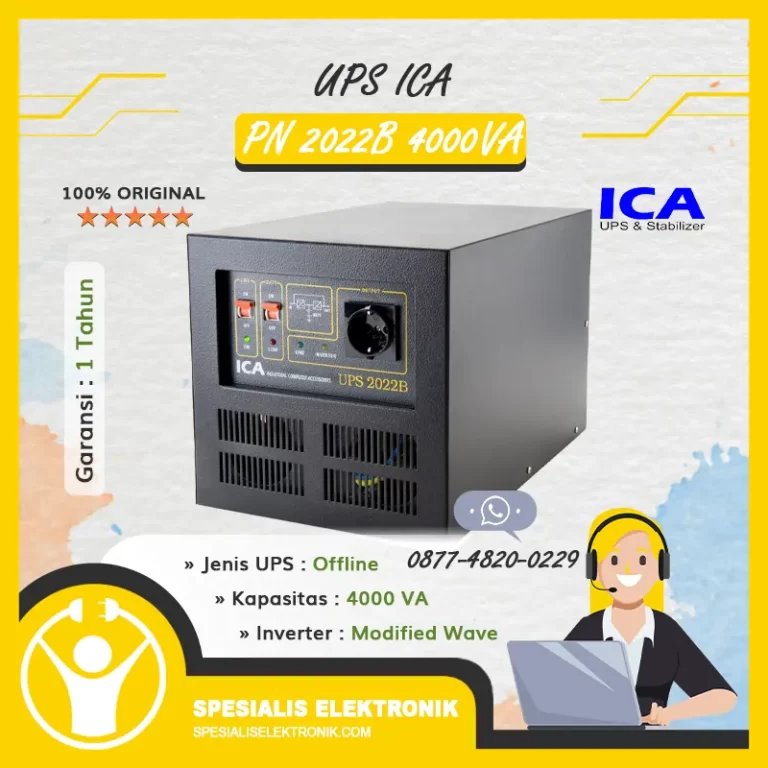

Spesialis Elektronik – UPS ICA PN 2022B 4000VA
ICA UPS PN 2022B Capacity 4000 VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
Technical Specifications UPS ICA PN 2022B 4000VA
| Model | : | UPS UPS2022B |
| Capacity | : | 4000 VA / 2000 W |
| AC Input Voltage | : | 160 – 250 V |
| AC Input Current | : | 10.2 A |
| AC Input Frequency | : | 50 ± 5% Hz |
| AC Input Protection | : | MCB 10A |
| DC Input Internal Battery | : | 4 x 12 V, 7 Ah |
| DC Input External Battery | : | 4 x 12 V, Max 40 Ah |
| DC Input Protection | : | MCB 63A |
| Inverter Output Waveform | : | SYNTHESIZED SINEWAVE |
| Inverter Output Voltage | : | 220 ± 5% V |
| Inverter Output Frequency | : | 50 Hz |
| Inverter Output Efficiency | : | >80 % |
| Charger Type | : | CONSTANT VOLTAGE |
| Charger Voltage | : | 54 V |
| Charger Current | : | 3 A |
| Transfer Time | : | ≤4 ms |
| Back Up Time | : | 10 min |
| Indicator | : | LED & BUZZER |
| Operation Temperature | : | 0 – 40 °C |
| Dimension(DxWxH) | : | 402 x 260 x 285 mm |
| Weight Netto | : | 25 Kg (without Internal Battery) |
| Weight Gross | : | 27 Kg (without Internal Battery) |
Terima kasih telah memesan UPS ICA PN 2022B 4000VA, Kami Spesialis Elektronik sangat bersemangat untuk memproses pesananmu. Jangan lupa untuk memeriksa halaman toko kami untuk berbelanja lebih banyak lagi, ya!
