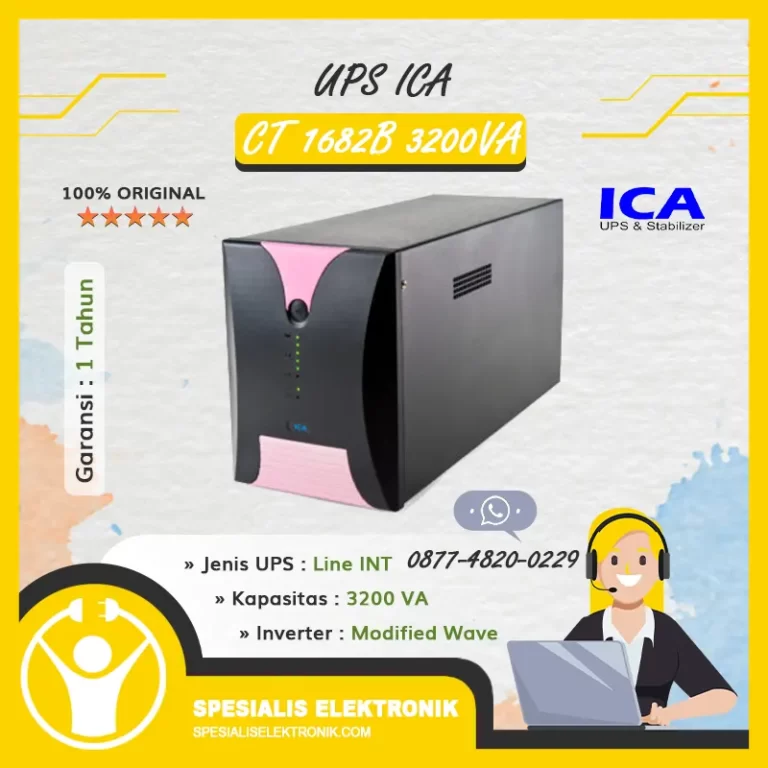

Spesialis Elektronik – UPS ICA CT 1682B 3200VA
ICA UPS CT 1682B Capacity 3200VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
Technical Specifications UPS ICA CT 1682B 3200VA
Model | : | UPS CT1682B |
Capacity | : | 3200 VA / 1600 W |
AC Input Voltage | : | 160 – 250 V |
AC Input Current | : | 7.7 A |
AC Input Frequency | : | 50 ± 3% Hz |
AC Input Protection | : | Fuse 10 A |
DC Input Internal Battery | : | 5 x 12 V, 7 Ah |
DC Input Protection | : | 50 A |
Inverter Output Waveform | : | SYNTHESIZED SINEWAVE |
Inverter Output Voltage | : | 220 ± 5% V |
Inverter Output Frequency | : | 50 Hz |
Inverter Output Efficiency | : | >80 % |
Charger Type | : | CONSTANT VOLTAGE |
Charger Voltage | : | 67.5V |
Charger Current | : | 1.5 A |
Transfer Time | : | ≤4 ms |
Back Up Time | : | 10 min |
Indicator | : | LED & BUZZER |
Operation Temperature | : | 0 – 40 °C |
Dimension(DxWxH) | : | 445 x 175 x 230 mm |
Weight Netto | : | 30 Kg |
Weight Gross | : | 25 Kg |
Terima kasih telah memesan UPS ICA CT 1682B 3200VA, Kami Spesialis Elektronik sangat bersemangat untuk memproses pesananmu. Jangan lupa untuk memeriksa halaman toko kami untuk berbelanja lebih banyak lagi, ya!
