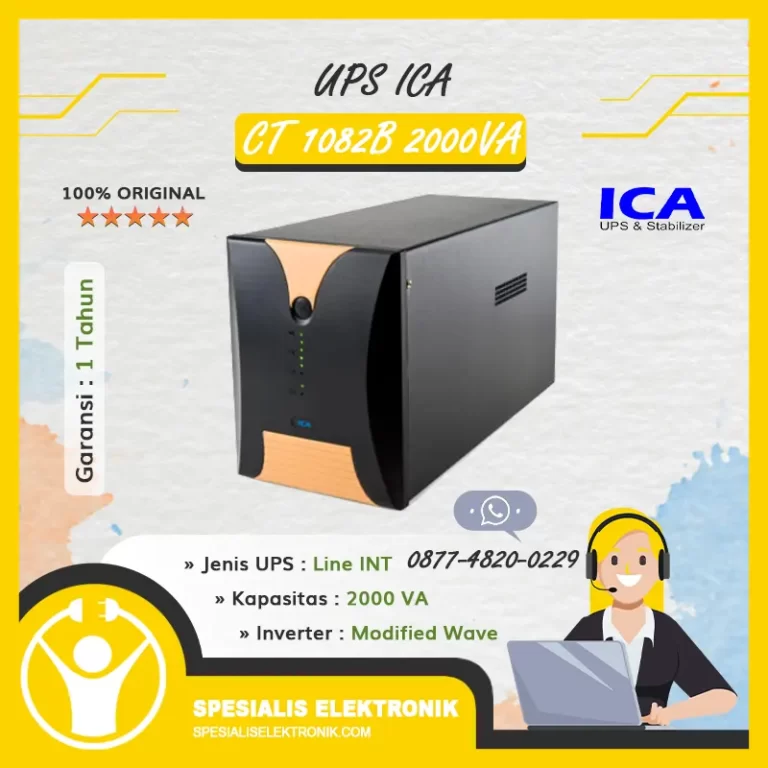

Spesialis Elektronik – UPS ICA CT 1082B 2000VA
ICA UPS CT 1082B Capacity 2000VA, inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
Technical Specifications UPS ICA CT 1082B 2000VA
| Model | : | UPS CT1082B |
| Capacity | : | 2000 VA / 1000 W |
| AC Input Voltage | : | 160 – 250 V |
| AC Input Current | : | 4.8 A |
| AC Input Frequency | : | 50 ± 3% Hz |
| AC Input Protection | : | Fuse 10 A |
| DC Input Internal Battery | : | 3 x 12 V, 7 Ah |
| DC Input Protection | : | 50 A |
| Inverter Output Waveform | : | SYNTHESIZED SINEWAVE |
| Inverter Output Voltage | : | 220 ± 5% V |
| Inverter Output Frequency | : | 50 Hz |
| Inverter Output Efficiency | : | >80 % |
| Charger Type | : | CONSTANT VOLTAGE |
| Charger Voltage | : | 40.5 V |
| Charger Current | : | 1.5 A |
| Transfer Time | : | ≤4 ms |
| Back Up Time | : | 10 min |
| Indicator | : | LED & BUZZER |
| Operation Temperature | : | 0 – 40 °C |
| Dimension(DxWxH) | : | 430 x 175 x 230 mm |
| Weight Netto | : | 20.3 Kg |
| Weight Gross | : | 22 Kg |
Terima kasih telah memesan UPS ICA CT 1082B 2000VA, Kami Spesialis Elektronik sangat bersemangat untuk memproses pesananmu. Jangan lupa untuk memeriksa halaman toko kami untuk berbelanja lebih banyak lagi, ya!
