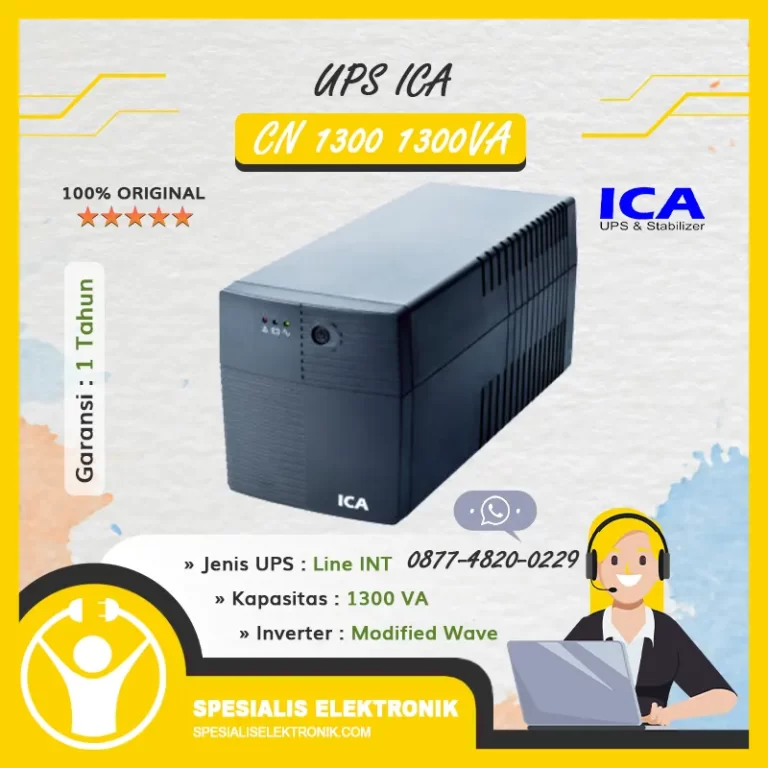

Spesialis Elektronik – UPS ICA CN 1300 1300VA
Inverter only works when the AC input voltage is low or loss. When the AC input voltage is in normal condition, ICA UPS will stabilize and filter the AC input voltage and supply a clean and stable AC voltage to the ICA UPS output and charge the battery. When the AC input voltage is low or loss, inverter will replace it and supply a stable AC voltage within a very short transfer time.
Technical Specifications UPS ICA CN 1300 1300VA
| Model | : | UPS CN1300 |
| Capacity | : | 1300VA / 650W |
| AC Input Voltage | : | 140 – 300 V |
| AC Input Current | : | 2.9 A |
| AC Input Frequency | : | 50 ± 3% Hz |
| AC Input Protection | : | Fuse 5 A |
| DC Input Internal Battery | : | 2 x 12 V, 7 Ah |
| Inverter Output Waveform | : | SYNTHESIZED SINEWAVE |
| Inverter Output Voltage | : | 220 ± 5% V |
| Inverter Output Frequency | : | 50 ± 3 Hz |
| Inverter Output Efficiency | : | >80 % |
| Charger Type | : | CONSTANT VOLTAGE |
| Charger Voltage | : | 27.4 V |
| Charger Current | : | 1.2 A |
| Transfer Time | : | ≤4 ms |
| Back Up Time | : | 10 min |
| Indicator | : | LED & BUZZER |
| Operation Temperature | : | 0 – 40 °C |
| Dimension(DxWxH) | : | 338 x 149 x 162 mm |
| Weight Netto | : | 7.5 Kg |
| Weight Gross | : | 8.5 Kg |
