NTI E-STHSB Temperature/Humidity/Dew Point Sensor

NTI
0 Terjual
(0 Ulasan)

Rp 4.500.000

  • Applications from -4 to 185°F (-20 to 85°C) and 0 to 90% relative humidity.
  • High resistance to external influences on the cable due to digital output signal.
  • Temperature accuracy:
    • ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
    • ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
    • ±1.62°F (±0.90°C) for 140 to 185°F (60 to 85°C).
  • Humidity accuracy (at 77°F/25°C):
    • 10 to 80% relative humidity: ±4%
    • 20 to 80% relative humidity: ±3%
    • 80 to 90% relative humidity: ±4%
  • Supports dew point measurement.
  • RJ45 connector.
  • Voltage supply: 5VDC
  • Current Consumption: 20mA
  • Communication type: RS485
  • Data rate: 96kbps
  • MTBF: 4,134,102 hours
  • Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
  • Powered by E-2D/5D/16D.
  • Compatible with E-2D/5D/16D.
    • E-2D: only compatible with Rev C units (features two power inputs).
    • Not compatible with E-SEMS-16(U).
  • Regulatory approvals: CE, RoHS
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
 Tanya CS
+ Daftar keinginan
Add to compare
0 People watching this product now!

Spesialis Elektronik – NTI E-STHSB Temperature/Humidity/Dew Point Sensor

  • Applications from -4 to 185°F (-20 to 85°C) and 0 to 90% relative humidity.
  • High resistance to external influences on the cable due to digital output signal.
  • Temperature accuracy:
    • ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
    • ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
    • ±1.62°F (±0.90°C) for 140 to 185°F (60 to 85°C).
  • Humidity accuracy (at 77°F/25°C):
    • 10 to 80% relative humidity: ±4%
    • 20 to 80% relative humidity: ±3%
    • 80 to 90% relative humidity: ±4%
  • Supports dew point measurement.
  • RJ45 connector.
  • Voltage supply: 5VDC
  • Current Consumption: 20mA
  • Communication type: RS485
  • Data rate: 96kbps
  • MTBF: 4,134,102 hours
  • Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
  • Powered by E-2D/5D/16D.
  • Compatible with E-2D/5D/16D.
    • E-2D: only compatible with Rev C units (features two power inputs).
    • Not compatible with E-SEMS-16(U).
  • Regulatory approvals: CE, RoHS
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Berat 1 kg
produk

Barang

merek

kondisi

Baru

jenis-sensor

Sensor Kelembapan

,

Sensor Suhu

Logo NTI

Network Technologies Inc (NTI), founded in 1984, is a leading manufacturer of high quality IT and A/V solutions. NTI products are used worldwide by leading companies in every industry, including manufacturing, retail, government, education, healthcare, financial services, entertainment, worship, broadcast, and telecommunications.

LIHAT PRODUK LAINNYA »
LIHAT PRODUK LAINNYA »
EMS NTI Enviromux E-16D
EMS NTI Enviromux E-16D Rack Mount Rail KIT

EMS NTI Enviromux E-16D

NTI
Rp 36.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan
EMS NTI Enviromux E-1W
Tampilan Depan dan Belakang EMS NTI Enviromux E-1W

EMS NTI Enviromux E-1W

NTI
Rp 6.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan
EMS NTI Enviromux E-2D
EMS NTI Enviromux E-2D Rack Mount Rail KIT

EMS NTI Enviromux E-2D

NTI
Rp 15.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan

Deskripsi

Spesialis Elektronik – NTI E-STHSB Temperature/Humidity/Dew Point Sensor

  • Applications from -4 to 185°F (-20 to 85°C) and 0 to 90% relative humidity.
  • High resistance to external influences on the cable due to digital output signal.
  • Temperature accuracy:
    • ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
    • ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
    • ±1.62°F (±0.90°C) for 140 to 185°F (60 to 85°C).
  • Humidity accuracy (at 77°F/25°C):
    • 10 to 80% relative humidity: ±4%
    • 20 to 80% relative humidity: ±3%
    • 80 to 90% relative humidity: ±4%
  • Supports dew point measurement.
  • RJ45 connector.
  • Voltage supply: 5VDC
  • Current Consumption: 20mA
  • Communication type: RS485
  • Data rate: 96kbps
  • MTBF: 4,134,102 hours
  • Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
  • Powered by E-2D/5D/16D.
  • Compatible with E-2D/5D/16D.
    • E-2D: only compatible with Rev C units (features two power inputs).
    • Not compatible with E-SEMS-16(U).
  • Regulatory approvals: CE, RoHS
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.

Informasi

Berat 1 kg
produk

Barang

merek

kondisi

Baru

jenis-sensor

Sensor Kelembapan

,

Sensor Suhu

Logo NTI

Network Technologies Inc (NTI), founded in 1984, is a leading manufacturer of high quality IT and A/V solutions. NTI products are used worldwide by leading companies in every industry, including manufacturing, retail, government, education, healthcare, financial services, entertainment, worship, broadcast, and telecommunications.

LIHAT PRODUK LAINNYA »
LIHAT PRODUK LAINNYA »
EMS NTI Enviromux E-16D
EMS NTI Enviromux E-16D Rack Mount Rail KIT

EMS NTI Enviromux E-16D

NTI
Rp 36.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan
EMS NTI Enviromux E-1W
Tampilan Depan dan Belakang EMS NTI Enviromux E-1W

EMS NTI Enviromux E-1W

NTI
Rp 6.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan
EMS NTI Enviromux E-2D
EMS NTI Enviromux E-2D Rack Mount Rail KIT

EMS NTI Enviromux E-2D

NTI
Rp 15.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan

Ulasan customer

0 reviews
0
0
0
0
0

Ulasan

Clear filters

Belum ada ulasan.

Jadilah yang pertama memberikan ulasan “NTI E-STHSB Temperature/Humidity/Dew Point Sensor”
SKU: 2063262132665 Kategori:

Produk terkait

NTI E-CDx-y Chemical Detection Sensor

NTI E-CDx-y Chemical Detection Sensor

NTI
Rp 2.542.500
Spesialis Elektronik – NTI E-CDx-y Chemical Detection Sensor
  • For detecting the presence of chemical liquid.
    • Reliably senses acids, bases, and other conductive liquids.
  • Detects liquid depth >0.1" (2.5 mm).
  • Minimum puddle: 0.6" (15 mm) diameter.
  • Chemical resistant – cable functions normally after seven-day exposure to:
    • Fresh deionized water
    • Tap water
    • Sulfuric acid, H2SO4 (98%)
    • Sulfuric acid, H2SO4 (50%)
    • Hydrochloric acid, HCl (37%)
    • Sodium hydroxide, NaOH (10%)
    • Aqua regia, HNO3+3 HCl
    • Ethylene glycol, C2H6O2 (60% in DI water)
  • Features a non-conductive polymer mesh that prevents false alarms caused by dirt/dust buildup, metal contact, or pressure on the rope.
  • Voltage and current:
    • Open Circuit: 5VDC max @ 1µA.
    • Closed circuit: <300mV @ 10.7mA.
  • Available chemical sensor cable (x) lengths: 1/10/50/100 feet.
    • 100% waterproof
    • Contact an NTI product consultant for cable lengths over 100 feet (30 meters) - supports up to 1,000 feet (305 meters).
  • Available 2-wire plenum cable (y) lengths: 5/10/20/50/100 feet.
    • Plenum rating: CL2P (UL)
    • Diameter: 0.25 in (6.35mm)
    • Contact an NTI product consultant for cable lengths over 100 feet (30 meters) – supports up to 1,000 feet (305 meters).
  • Regulatory approvals: CE, RoHS
  • Use self-adhesive clips (E-CLPxx-LD) to prevent sensor rope cable from shifting after installation.
+ Daftar keinginan
+ keranjang
Lihat sekilas
NTI E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style

NTI E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style

NTI
Rp 1.080.000
Spesialis Elektronik – NTI E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style
  • For detecting water presence and warning of flooding.
  • 100% waterproof electronics.
  • Detects any conductive liquid or moisture.
    • Water sensor cable cannot be in contact with any conductive surfaces or overlap on itself.
  • Minimum puddle: 0.06" (1.5 mm) diameter.
  • Voltage and current:
    • Open Circuit: 5VDC max @ 1µA.
    • Closed circuit: <300mV @ 10.7mA.
  • Available water sensor cable (x) lengths: 1/10/50/100/200/400/600 feet.
    • Material: PVC twisted pair with stainless 316 elements
    • Diameter: 0.14" (3.5 mm)
  • Available 2-wire cable (y) lengths: 5/10/20/50/100 feet.
    • Contact an NTI product consultant for cable lengths over 100 feet (30 meters) - supports up to 1,000 feet (305 meters).
+ Daftar keinginan
+ keranjang
Lihat sekilas
NTI E-RTDS-A1112 All-Purpose 100 Ohm RTD Sensor

NTI E-RTDS-A1112 All-Purpose 100 Ohm RTD Sensor

NTI
Rp 12.150.000
Spesialis Elektronik – NTI E-RTDS-A1112 All-Purpose 100 Ohm RTD Sensor
  • Precision sensor with 316 stainless steel probe.
  • Applications from -328 to 1112°F (-200 to 600°C).
  • Accurate to within ±0.27°F (±0.15°C) for -148 to 842°F (-100 to 450°C).
  • Probe size: 6 in (152 mm)
  • Cable length: 40 in (1.02 m) 4-wire lead.
    • Lead wire max temperature: 482°F (250°C)
  • 100 Ohm Pt 385 curve.
  • Requires the E-RTDT-140/240/1562 and E-S420MA-24V to operate with the E-2D/5D/16D.
    • E-RTDT-140 supports temperatures -20 to 140°F (-28 to 60°C).
    • E-RTDT-240 supports temperatures 30 to 240°F (-1 to 115°C).
    • E-RTDT-1562 supports temperatures -328 to 1562°F (-200 to 855°C).
+ Daftar keinginan
+ keranjang
Lihat sekilas
NTI E-RTDS-A221 All-Purpose 100 Ohm RTD Sensor

NTI E-RTDS-A221 All-Purpose 100 Ohm RTD Sensor

NTI
Rp 5.850.000
Spesialis Elektronik – NTI E-RTDS-A221 All-Purpose 100 Ohm RTD Sensor
  • Rugged, point-sensitive waterproof sensor with 304 stainless steel probe and brass fitting.
  • Applications from -67 to 221°F (-55 to 105°C).
  • Accurate to within ±0.27°F (±0.15°C).
  • Probe size: 9" (229 mm)
    • Brass fitting with 1/2" NPT male thread.
  • Cable length: 18" (457 mm) 2-wire lead.
  • 100 Ohm Pt 385 curve.
  • Suitable for plenum mounting, duct mounting, immersion wells, or outside air.
  • Regulatory approvals: CE
  • Requires the E-RTDT-140/240/1562 and E-S420MA-24V to operate with the E-2D/5D/16D.
    • E-RTDT-140 supports temperatures -20 to 140°F (-28 to 60°C).
    • E-RTDT-240 supports temperatures 30 to 240°F (-1 to 115°C).
    • E-RTDT-1562 supports temperatures -328 to 1562°F (-200 to 855°C).
+ Daftar keinginan
+ keranjang
Lihat sekilas

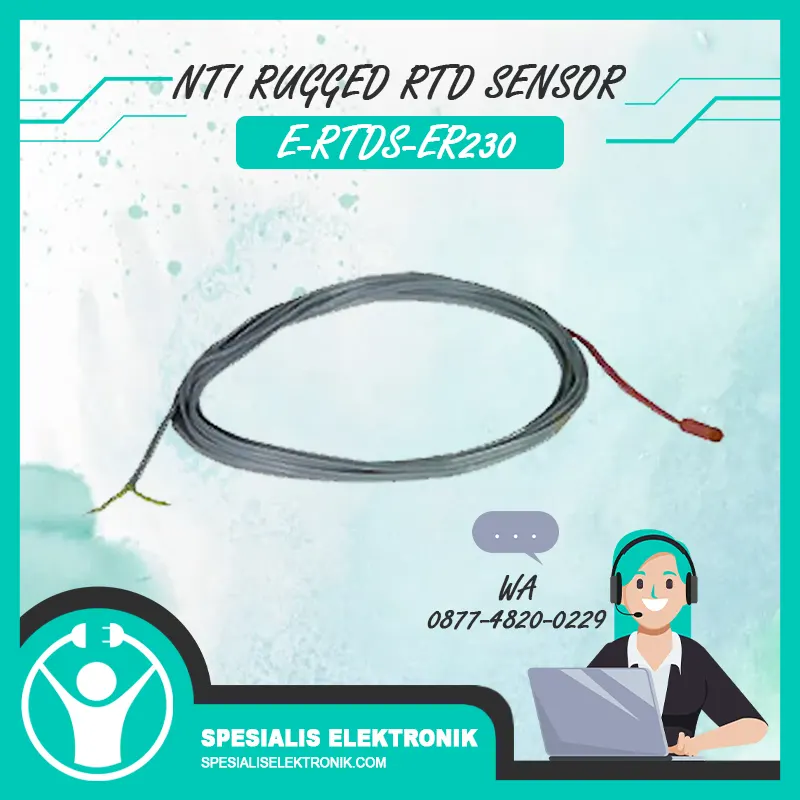

NTI E-RTDS-ER230 Rugged Encapsulated 100 Ohm RTD Sensor

NTI E-RTDS-ER230 Rugged Encapsulated 100 Ohm RTD Sensor

NTI
Rp 2.835.000
Spesialis Elektronik – NTI E-RTDS-ER230 Rugged Encapsulated 100 Ohm RTD Sensor
  • Applications from -30°F to 230°F (-34°C to 110°C).
  • Accurate to within ±0.6°F (±0.33°C).
  • Probe size: 0.18" (4.57 mm) round, 0.50" (12.7 mm) long housing.
  • Cable length: 8 feet (2.4 m) 24 AWG 2-wire leads
  • 100 Ohm Pt 385 curve.
  • Immune to the effects of moisture and condensation.
  • Suitable for remote temperature sensing for building automation systems and mechanical equipment room instrumentation
  • Small enough to be installed in most HVAC thermostat enclosures.
  • Regulatory approvals: CE
  • Requires the E-RTDT-140/240/1562 and E-S420MA-24V to operate with the E-2D/5D/16D.
    • E-RTDT-140 supports temperatures -20 to 140°F (-28 to 60°C).
    • E-RTDT-240 supports temperatures 30 to 240°F (-1 to 115°C).
    • E-RTDT-1562 supports temperatures -328 to 1562°F (-200 to 855°C).
+ Daftar keinginan
+ keranjang
Lihat sekilas
NTI E-STHS-LSH Fan-Aspirated TemperatureHumidityDew Point Sensor, Low Self-Heating

NTI E-STHS-LSH Fan-Aspirated Temperature/Humidity/Dew Point Sensor, Low Self-Heating

NTI
Rp 7.200.000
  • Fan-Aspirated Temperature/Humidity Sensor compensates for parasitic heating due to electrical power dissipation and/or exposure to solar radiation.
    • Internal fan constantly draws air in over the sensor, providing highly accurate temperature readings.
    • Ideal for installations where steep temperature gradients are common, and where there is little to no air flow.
      • Use in freezers where there is intermittent air flow.
  • Applications from -4 to 140°F (-20 to 60°C) and 0 to 90% relative humidity.
  • Temperature accuracy:
    • ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
    • ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
    • Inflation due to self-heating: <0.9°F (0.5°C) typical, 2.3°F (1.3°C) max.
  • Humidity accuracy (at 77°F/25°C):
    • 10 to 80% relative humidity: ±4%
    • 20 to 80% relative humidity: ±3%
    • 80 to 90% relative humidity: ±4%
  • Supports dew point measurement.
  • Aspiration rate: 1 cfm (0.2 ft/s)
  • Dimensions (including mounting brackets) WxDxH (in): 2.19x2.87x1.41 (56x73x36 mm)
  • Communication type: RS485
  • Compatible with E-2D/5D/16D.
  • Powered by E-2D/5D/16D.
  • Current consumption: 17mA @ 5VDC and 25mA@12VDC
  • MTBF: 423,371 hours
  • Regulatory approvals: CE, RoHS
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2km) from the ENVIROMUX unit.
+ Daftar keinginan
+ keranjang
Lihat sekilas

NTI E-STS-O IP65 Outdoor Temperature Sensor

NTI
Rp 3.300.000
  • Applications from -40 to 185°F (-40 to 85°C).
  • Accurate to within ±0.9°F (±0.5°C).
  • Weatherproof enclosure.
    • IP65-rated water and dust protection.
  • High resistance to external influences on the cable due to digital output signal.
  • Re-calibration is not necessary after initial set-up.
  • Quick release waterproof RJ45 connector.
  • Supports CAT5/5e/6 cable up to 1,000 ft. (305 m).
  • Dimensions WxDxH (in): 4.53x2.56x2.13 (115x65x54 mm).
  • MTBF: 1,860,032 hours.
  • Current consumption: 14mA @ 5VDC.
  • Powered by E-2D/5D/16D.
  • Compatible with E-2D/5D/16D.
  • Regulatory approvals: CE, RoHS
  • Compatible with E-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
+ Daftar keinginan
+ keranjang
Lihat sekilas
NTI E-STSMA-E7 Probe-Style Temperature Sensor

NTI E-STSMA-E7 Probe-Style Temperature Sensor

NTI
Rp 4.140.000
Spesialis Elektronik – NTI E-STSMA-E7 Probe-Style Temperature Sensor
  • For use with E-2D/5D/16D.
    • E-2D: only compatible with Rev C units (features two power inputs).
    • Not compatible with E-SEMS-16(U).
  • Applications from -4 to 140°F (-20 to 60°C).
  • High resistance to external influences on the cable due to digital output signal.
+ Daftar keinginan
+ keranjang
Lihat sekilas
