NTI E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style

NTI
0 Terjual
(0 Ulasan)

Rp 1.080.000

Spesialis Elektronik – NTI E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style

  • For detecting water presence and warning of flooding.
  • 100% waterproof electronics.
  • Detects any conductive liquid or moisture.
    • Water sensor cable cannot be in contact with any conductive surfaces or overlap on itself.
  • Minimum puddle: 0.06″ (1.5 mm) diameter.
  • Voltage and current:
    • Open Circuit: 5VDC max @ 1µA.
    • Closed circuit: <300mV @ 10.7mA.
  • Available water sensor cable (x) lengths: 1/10/50/100/200/400/600 feet.
    • Material: PVC twisted pair with stainless 316 elements
    • Diameter: 0.14″ (3.5 mm)
  • Available 2-wire cable (y) lengths: 5/10/20/50/100 feet.
    • Contact an NTI product consultant for cable lengths over 100 feet (30 meters) – supports up to 1,000 feet (305 meters).
 Tanya CS
+ Daftar keinginan
Add to compare
0 People watching this product now!

Spesialis Elektronik – NTI E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style

  • For detecting water presence and warning of flooding.
  • 100% waterproof electronics.
  • Detects any conductive liquid or moisture.
    • Water sensor cable cannot be in contact with any conductive surfaces or overlap on itself.
  • Minimum puddle: 0.06″ (1.5 mm) diameter.
  • Voltage and current:
    • Open Circuit: 5VDC max @ 1µA.
    • Closed circuit: <300mV @ 10.7mA.
  • Available water sensor cable (x) lengths: 1/10/50/100/200/400/600 feet.
    • Material: PVC twisted pair with stainless 316 elements
    • Diameter: 0.14″ (3.5 mm)
  • Available 2-wire cable (y) lengths: 5/10/20/50/100 feet.
    • Contact an NTI product consultant for cable lengths over 100 feet (30 meters) – supports up to 1,000 feet (305 meters).
Berat 1 kg
produk

Barang

merek

kondisi

Baru

jenis-sensor

Sensor Cairan

Logo NTI

Network Technologies Inc (NTI), founded in 1984, is a leading manufacturer of high quality IT and A/V solutions. NTI products are used worldwide by leading companies in every industry, including manufacturing, retail, government, education, healthcare, financial services, entertainment, worship, broadcast, and telecommunications.

LIHAT PRODUK LAINNYA »
LIHAT PRODUK LAINNYA »
EMS NTI Enviromux E-16D
EMS NTI Enviromux E-16D Rack Mount Rail KIT

EMS NTI Enviromux E-16D

NTI
Rp 36.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan
EMS NTI Enviromux E-1W
Tampilan Depan dan Belakang EMS NTI Enviromux E-1W

EMS NTI Enviromux E-1W

NTI
Rp 6.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan
EMS NTI Enviromux E-2D
EMS NTI Enviromux E-2D Rack Mount Rail KIT

EMS NTI Enviromux E-2D

NTI
Rp 15.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan

Deskripsi

Spesialis Elektronik – NTI E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style

  • For detecting water presence and warning of flooding.
  • 100% waterproof electronics.
  • Detects any conductive liquid or moisture.
    • Water sensor cable cannot be in contact with any conductive surfaces or overlap on itself.
  • Minimum puddle: 0.06″ (1.5 mm) diameter.
  • Voltage and current:
    • Open Circuit: 5VDC max @ 1µA.
    • Closed circuit: <300mV @ 10.7mA.
  • Available water sensor cable (x) lengths: 1/10/50/100/200/400/600 feet.
    • Material: PVC twisted pair with stainless 316 elements
    • Diameter: 0.14″ (3.5 mm)
  • Available 2-wire cable (y) lengths: 5/10/20/50/100 feet.
    • Contact an NTI product consultant for cable lengths over 100 feet (30 meters) – supports up to 1,000 feet (305 meters).

Informasi

Berat 1 kg
produk

Barang

merek

kondisi

Baru

jenis-sensor

Sensor Cairan

Logo NTI

Network Technologies Inc (NTI), founded in 1984, is a leading manufacturer of high quality IT and A/V solutions. NTI products are used worldwide by leading companies in every industry, including manufacturing, retail, government, education, healthcare, financial services, entertainment, worship, broadcast, and telecommunications.

LIHAT PRODUK LAINNYA »
LIHAT PRODUK LAINNYA »
EMS NTI Enviromux E-16D
EMS NTI Enviromux E-16D Rack Mount Rail KIT

EMS NTI Enviromux E-16D

NTI
Rp 36.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan
EMS NTI Enviromux E-1W
Tampilan Depan dan Belakang EMS NTI Enviromux E-1W

EMS NTI Enviromux E-1W

NTI
Rp 6.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan
EMS NTI Enviromux E-2D
EMS NTI Enviromux E-2D Rack Mount Rail KIT

EMS NTI Enviromux E-2D

NTI
Rp 15.000.000
+ keranjang
Lihat sekilas
+ Daftar keinginan

Ulasan customer

0 reviews
0
0
0
0
0

Ulasan

Clear filters

Belum ada ulasan.

Jadilah yang pertama memberikan ulasan “NTI E-LD-LCx-y Low-Cost Liquid Detection Sensor, Rope-Style”
SKU: 2071478342006 Kategori:

Produk terkait

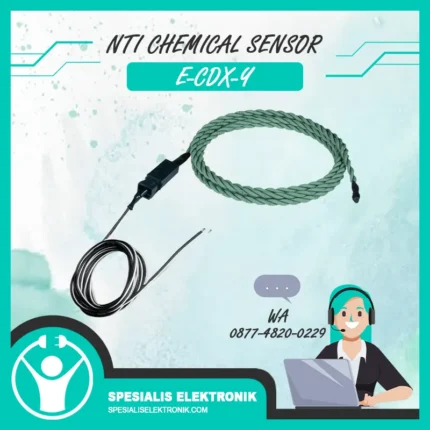

NTI E-CDx-y Chemical Detection Sensor
